I. Demand Dimension: Precisely Match Supply Sources and Prevent Mismatch Between Supply and Demand
Core logic: Standardize all procurement requirements first, then screen suppliers against requirements. Filter out poorly matched suppliers from the very beginning from four dimensions: product, order, commercial and after-sales, to avoid confusing quotations, incorrect goods and delivery breach.
1.1 Breakdown of Full-dimensional Requirements (with matching standard table)
| Requirement Category | Sub-item Requirement | Detailed Matching Standard | Sourcing Screening Requirement |
|---|---|---|---|
| Technical Product Requirement | Product type & working condition | Clarify pump category (submersible sewage pump, inline pump, self-priming pump, deep well pump, chemical pump, etc.); distinguish medium (clean water, sewage, sand-laden water, corrosive liquid, high-temperature water), application environment (indoor/outdoor/buried) | The supplier’s main product range must fully match. Cross-category patchwork supply is not accepted; working condition adaptability must reach 100%. |
| Core parameters | Precisely define flow rate, head, rated power, voltage & frequency (220V/380V 50Hz for domestic; 220V/415V 60Hz for export), rotating speed, inlet & outlet diameter | Product parameters can be precisely aligned; parameter fine-tuning is supported. Parameter exaggeration and non-standard modification are prohibited. | |
| Material specification | Define material for pump body, impeller, pump shaft, mechanical seal and outer casing (cast iron / 201 / 304 / 316 stainless steel / PP plastic) | Suppliers shall commit to material specifications in writing; material verification is supported. Replacing high-grade material with inferior low-grade material is strictly forbidden. | |
| Qualification & certification | Domestic projects require ISO9001 and production qualifications; export requires CE, GOST, SASO, UL and other target market access certificates | Certificates shall be authentic and verifiable. Scanned copies of original documents shall be provided; forged or expired certificates are not acceptable. | |
| Order Procurement Requirement | Procurement volume | Confirm one-time order quantity, monthly/annual estimated volume and regular stock demand | Supplier production capacity can cover procurement volume without capacity gap for large orders, and no MOQ barrier for small orders. |
| Minimum Order Quantity (MOQ) | Distinguish MOQ for standard stock items and customized items (OEM logo, parameter adjustment, packaging modification) | Stock items support small-batch bulk purchase; MOQ of customized products complies with procurement budget. | |
| Delivery lead time | Confirm the latest delivery time for urgent orders, regular orders and customized orders; distinguish lead time in peak and off seasons | Delivery time can be committed in writing; emergency production capacity is available in peak season with unlimited delivery delay. | |
| Commercial Supporting Requirement | Customization service | Confirm if OEM logo, custom label, cable length adjustment, flange standard modification, bilingual instruction manual are required | Corresponding customization service is supported without high hidden extra charges; customization cycle is controllable. |
| Payment term | New cooperation to support 30% prepayment + balance paid after pre-shipment inspection; credit term negotiable for long-term clients | Flexible payment rules; 100% prepayment is not mandatory, complying with risk control. | |
| After-sales Technical Requirement | Technical support, installation guidance, spare parts supply, warranty maintenance, return & replacement service | Dedicated technical contact person assigned; long-term supply of wearing parts with timely after-sales response. |
1.2 Demand Matching Screening Process (Implementation Steps)
- Compile complete Procurement Requirement List and avoid ambiguous requirements.
- Send RFQ to suppliers in batches, initially filter suppliers with matching degree over 80%.
- Eliminate suppliers with unmatched parameters, missing certificates, unsatisfactory lead time or unavailable customization service.
- Reserve 5–8 fully matched suppliers for quality verification stage.
II. Product Quality Dimension: Full-process Quality Control to Eliminate Inferior Supply and Cutting Corners
Core logic: Establish quantitative quality control standards from four dimensions: material & workmanship, performance parameter, factory inspection and after-sales warranty. Solve common pain points in pump industry: exaggerated parameters, aluminum wire pretending to be copper wire, material substitution, seal leakage and high defective rate.
2.1 Product Quality Core Assessment Standard Table
| QC Module | Inspection Item | Acceptance Standard | Common Defects of Inferior Suppliers | Verification Method |
|---|---|---|---|---|
| Material & Workmanship QC | Motor winding | 100% pure copper winding, high temperature resistant, anti-burnout with qualified winding turns | Copper-clad aluminum / all aluminum winding, burnout after short-time operation and severe overheating | Sample disassembly verification, electrification temperature rise test, material commitment in contract |
| Pump body & impeller material | Cast iron without sand holes or air pores; 304/316 stainless steel with uniform wall thickness | 201 stainless steel passed off as 304, thin wall material reduction, cracks and sand holes on casing | Material test reagent, sample disassembly, visual inspection | |
| Mechanical seal | High-quality silicon carbide / ceramic mechanical seal matching working condition, waterproof and leakage-proof | Low-grade plastic seal, rapid wear under sewage condition, water ingress and motor burnout | Sample disassembly, long-time submerged running test | |
| Cable & accessories | National standard waterproof cable with accurate length and tightly sealed connector, aging resistant | Undersized cable, shortened length, easy cracking and water penetration | Length measurement, bending aging test | |
| Performance Parameter QC | Flow rate & head | Deviation between measured data and nameplate ≤5%, no exaggerated rating, stable full-load operation | Severe parameter overstatement (nameplate 50m head while actual measured only 30m), insufficient load capacity | Bench performance test, sealed sample comparison |
| Running status | Continuous 4-hour operation without abnormal noise, heavy vibration or excessive temperature rise | Loud noise, strong vibration, rapid heating, failure to restart after shutdown | Prototype continuous running test | |
| Overload capacity | Stable short-time operation under slight overload without tripping or burnout | Direct shutdown and burnout under minor overload with extremely low fault tolerance | Simulated working condition overload test | |
| Factory Inspection QC | Complete machine inspection | Every pump shall pass factory inspection on flow, head, pressure, insulation and leakage with test records retained | No 100% unit inspection, only sampling; defective products delivered directly | Check factory testing equipment, retrieve factory test records |
| Finished product QC | No dents or paint peeling, clear nameplate, fastened screws and complete accessories | Refurbished defective goods, scratches, missing accessories | Finished product sampling inspection, full container pre-shipment inspection | |
| Warranty & After-sales QC | Warranty term & scope | Standard pumps: 1-year warranty; industrial pumps: 2-year warranty. Main body (motor & pump casing) covered, clear warranty rules for wearing parts | Vague warranty clause, only pump casing covered excluding motor; after-sales prevarication and no compensation | Lock warranty terms and liquidated damages in written contract |
2.2 Core Quality Screening Process
- Request samples from all potential suppliers; 2 samples for disassembly verification and bench test separately.
- Seal qualified samples as acceptance standard for bulk goods.

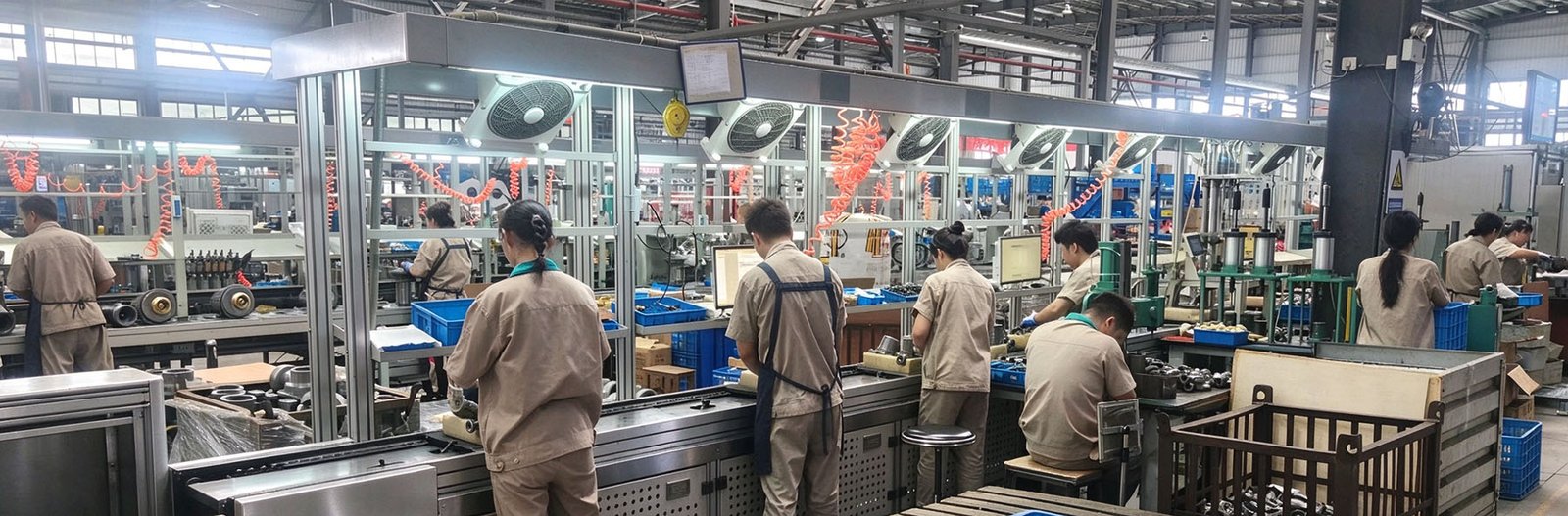

- Audit factory workshop and testing equipment, eliminate small workshops without quality control.
- Conduct small-batch trial order to verify consistency between bulk goods and samples.
- Long-term cooperation only if 100% qualification rate is achieved.
III. Allocation & Delivery Dimension: Guarantee Stable Supply, Standard Shipment and Trouble-free After-sales
Core logic: Solve supply shortage, incomplete picking, packaging damage, logistics error and lack of spare parts for after-sales from five dimensions: inventory supply, batch allocation, packaging & logistics, spare parts matching and delivery risk control. Applicable for wholesale, export and project supporting scenarios.
3.1 Allocation & Delivery Full-dimensional Assessment Standard Table
| Allocation Module | Inspection Item | Detailed Standard | Unqualified Supplier Issues | Verification Method |
|---|---|---|---|---|
| Inventory & Supply Capacity | Regular stock | Standard hot-selling models have fixed stock and can be shipped on the same day or next day | Zero inventory, all made-to-order; extremely long lead time for small orders | Check real-time inventory ledger and historical shipment records |
| Production capacity guarantee | Stable capacity in peak & off seasons; expandable capacity in peak season without stock-out or order cut-off | Insufficient capacity in peak season, random delay and order reduction | Check production line scale and monthly capacity report | |
| Multi-model consolidation | One-stop supply for multiple pump types & specifications, mixed batch and mixed container loading supported | Single product range; purchase from multiple suppliers, high logistics cost and complicated reconciliation | Submit procurement list to verify consolidation capability | |
| Order Allocation Specification | Order picking accuracy | Model, power, parameter and quantity fully consistent with order, no wrong delivery, omission or shortage | Mixed shipment, confused model and quantity shortage | Check packing list before shipment, sampling inspection |
| Batch consistency | Same batch products with consistent workmanship, material and parameters, no batch fluctuation | Uneven quality among batches and frequent material reduction | Compare samples from multiple batches | |
| Packaging & Shipment | Domestic packaging | Reinforced carton + foam protection, wooden frame reinforcement for large items to prevent collision and extrusion | Thin simple carton with high transport damage rate | Inspect on-site packaging process, collect damage statistics |
| Export packaging | Marine moisture-proof packaging, fumigated wooden pallet, stretch film wrapping; custom shipping mark & label available | No moisture-proof treatment, rust & damage during sea transit, failing customs clearance | Check export packaging samples and previous container loading cases | |
| Spare Parts & Supporting Service | Wearing parts supply | Supply mechanical seal, O-ring, bearing, cable and other wearing parts, deliver along with order | No spare parts available, no accessories for maintenance | Confirm spare parts list and stock availability |
| Document support | Supply manual, certificate, test report and qualification documents (bilingual) with shipment | Missing documents or inconsistent certificates, failing tender / customs clearance | Verify full set of shipment documents | |
| Delivery Risk Control | Inspection & compensation | Support factory inspection and third-party inspection; compensation available for delay, wrong shipment or quality defect | Inspection rejected, no compensation and prevarication after problems occur | Lock breach compensation terms in contract |
3.2 Summary of Allocation Standard for High-quality Suppliers
- Adequate stock, stable production capacity, support small/large orders and customized mixed batches with controllable lead time.
- Zero picking error, consistent batch quality, no wrong or missing delivery.
- Packaging adapted to transportation scenarios; standardized domestic & export packaging with ultra-low damage rate.
- Complete spare parts and supporting documents with sound supporting service.
- Sound delivery risk control with traceable and compensable breach of contract.
IV. Overall Sourcing Screening Priority
Step 1: Demand matching screening (eliminate suppliers failing basic requirements) → Step 2: Product quality verification (sample + bench test + workshop audit) → Step3: Assessment of allocation & delivery capability (stable supply + standard shipment) → Step4: Small trial order → Step5: Long-term stable cooperation + backup supplier reserve
